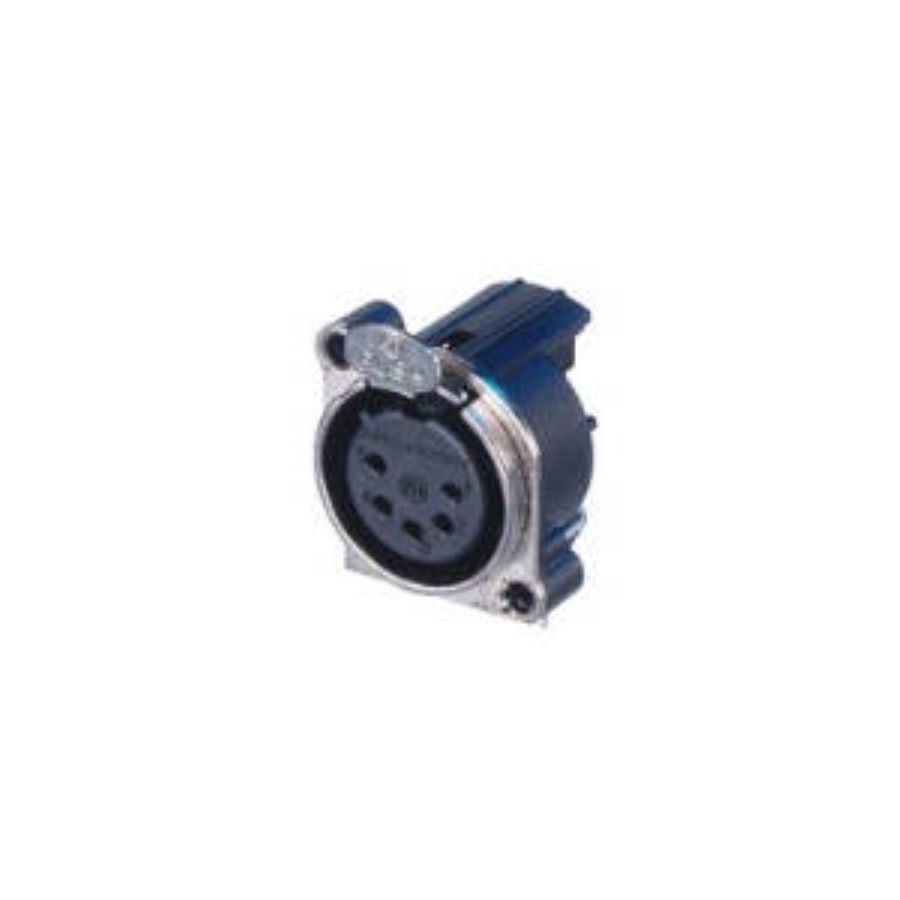

NC5FBH
Manufacturer:
Neutrik AG
Mfr.Part #:
NC5FBH
Datasheet:
Description:
Audio / Video Connectors PCB Female Number of Positions:5 Horizontal
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Length | 177.8 mm |
| Width | 101.6 mm |
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 50 V |
| Height | 31.75 mm |
| Voltage Rating | 50 V |
| RoHS | Compliant |
| Insulation Resistance | 2 GΩ |
| REACH SVHC | No SVHC |
| Weight | 9 g |
| Ratings | IP40 |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Number of Terminals | 5 |
| Current Rating | 3 A |
| Flammability Rating | UL94HB |
| Orientation | Horizontal |
| Color | Silver |
| Gender | Female |
| Number of Contacts | 5 |
| Body Material | Metal |
| Number of Positions | 5 |
| Housing Material | Polyamide |
| Number of Ports | 1 |
| Contact Resistance | 5 mΩ |
| Contact Gender | Female |
| Packaging | Bulk |
Stock: 460
Distributors
pcbx
pcbxUnit Price$4.92696
Ext.Price$4.92696
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.92696 | $4.92696 |
| 10 | $4.57900 | $45.79000 |
| 25 | $4.31851 | $107.96275 |
| 50 | $4.07284 | $203.64200 |
| 100 | $3.84120 | $384.12000 |
| 300 | $3.77480 | $1132.44000 |
| 500 | $3.70954 | $1854.77000 |
| 1000 | $3.53513 | $3535.13000 |
| 3000 | $3.46127 | $10383.81000 |
| 5000 | $3.38894 | $16944.70000 |
